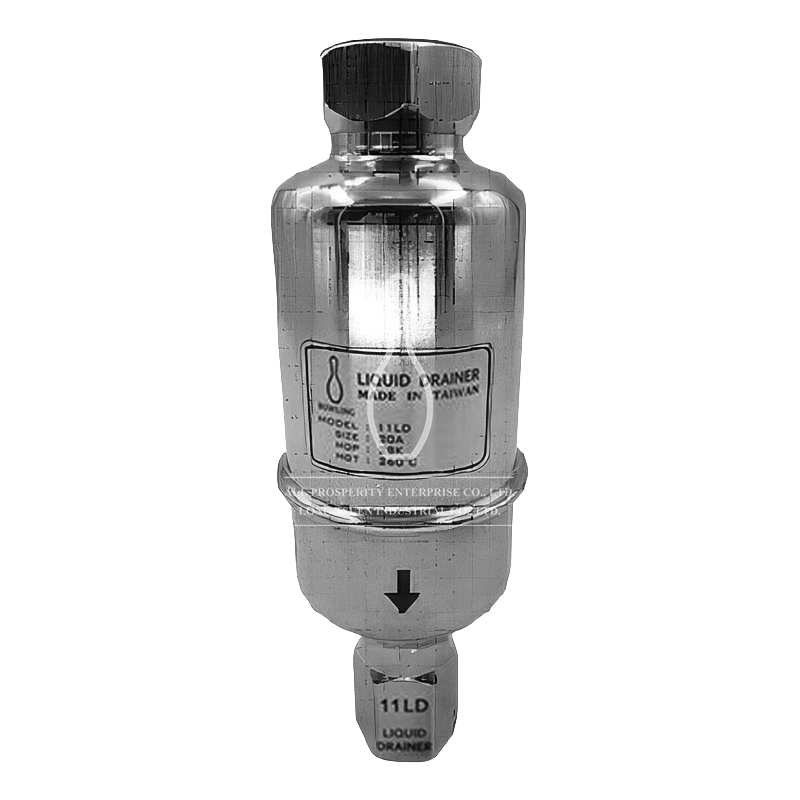

Introduction – BOWLING Brand Ball Float Type Automatic Liquid Drainer
T
The principle of operation of BOWLING BRAND No. 11LD STAINLESS STEEL LIQUID DRAINER is based on the different density between liquid and air/ gas. When the condensate liquid goes into liquid drainer, the condensate liquid is accumulating at bottom of 11LD in order to make stainless steel ball float to drain extra liquid. After draining liquid until the liquid limit position, the valve seat of liquid drainer would close to avoid air/ gas from leakage.
- Suit to the bottom position of the application, pipeline or tank with differential air pressure.
- All sealed stainless steel body: high strength and corrossion resistance.
- With strainer on the inlet position which can restrain impurity. (optional)
- Not suitable to oil evironment.
- Upside inlet and dowside outlet. vertical installation only.
- Clean, portable and durable. three years warranty.
- Other specific or size is available. please consult with factory.

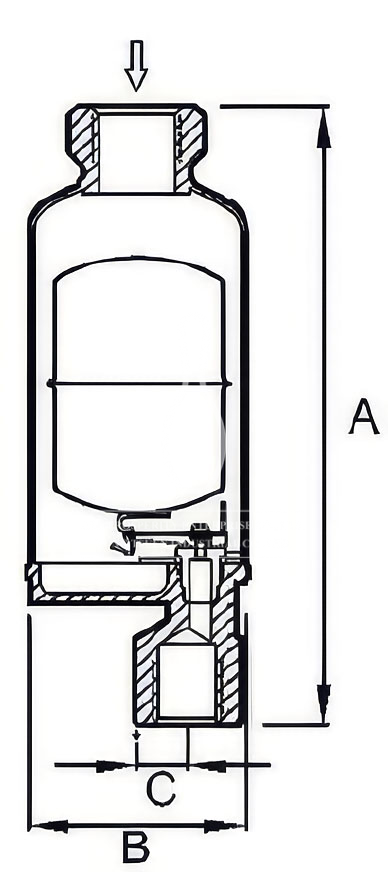

Dimensions (Unit: mm)
No.11LD MOP (kg/cm2). WT (kg)
*NPT. PT. SW. AVAILABLE
*WELDIN FLANGE AVAILABLE, CONSULT FACTORY
Construction of Materials
*Optional: STRAINER SS304
Discharge Capacity Nm3/min
How to Order:
- Type: BOWLING 11LD X
- Conn: 1/2" NPT X
- Mop: 9K
Note
Make sure it must be clean in pipeline system before installation.
It is not allowed that there is any impurity stuck at the exhaust hole.
