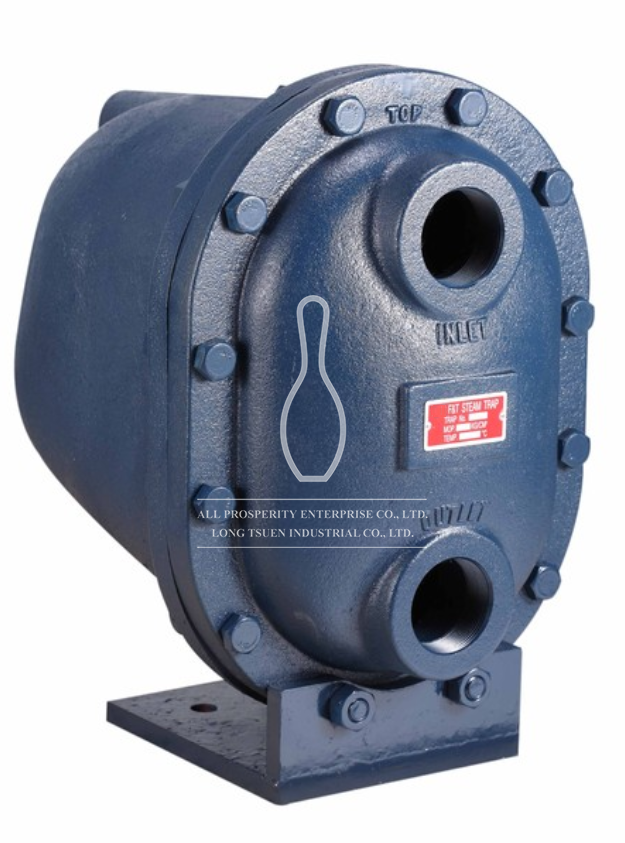

BF2 - BF08 Series

Inquiry NEXT Favorite
無現貨,到貨通知
Product Description

Specification

Size (Screwed End): 1/2” –2” (DN15 – DN50)
Size (Flanged End): 1/2” –2” (DN15 – DN50)





Connection End


NPT and BSPT Screwed End
PN/ JIS/ ANSI Flanged End



Maximum Operating Pressure: 17 KGS
Working Temperature: 230°C



No.BF2 SERIES DIMENSIONS (MM). MOP(KG/CM2). WT(KG)

No. CONN.SE.* A B C D E MOP WT (KG) No. BF2~BF08
BF2 15.20.25 106 70 60 149 23 12.5 3.6

BF5 15.20.25 106 80 67 190 25 17 5
BF6 32.40 138 100 66 210 36 17 8.5
BF8 40.50 199 100 90 300 69 17 16
BF08 40.50 199 176 101 349 69 17 23

*NPT. BSPT. AVAILABLE





General Material



CAP & BODY ASTM A48.CAST IRON
DUCTILE IRON A536
FLOAT STAINLESS STEEL 304
MECHANISM STAINLESS STEEL 304
SEAT& VALVE HARDENED S. S
AIR VENT CAGE STAINLESS STEEL
DIAPHRAGM OF AIR VENT STAINLESS STEEL
GASKET GRAPHITE
BOLTS & NUTS CARBON STEEL





Integral Parts:

Air Vent – Thermostatic Type and Stainless Steel material





Mechanism

Float Ball and Float holder in Stainless Steel material.







HOW TO ORDER

TRAP No SIZE AND SCREWED STANDARD Max. Operating Pressure (MOP) ACCESSORIES
BF 5 3/4”NPT 9K -





Transaction Process





Certificate & Patent

ISO 9001:2008
Manufacture License of Special Equipment PN4.0 Mpa
Patent No: ZL 2009 2 0003337.2
SGS
