GDR-T

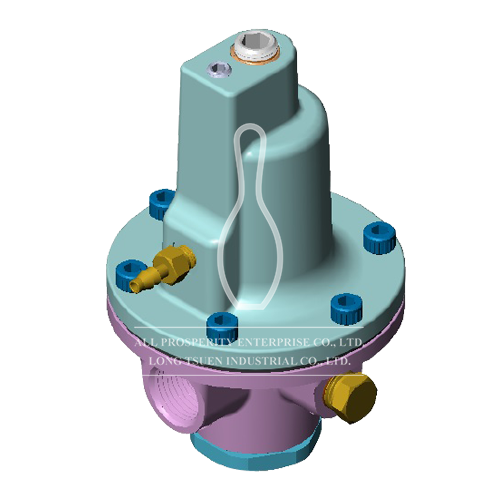

GDR-T Series Cryogenic Gas Delivery Regulators
GDR-T Series Cryogenic Gas Delivery Regulators
Inquiry PREV NEXT Favorite
無現貨,到貨通知
Product Description

Bowling Brand GDR-T Series Cryogenic Gas Delivery Regulators provides reliable and precise pressure control in LNG vehicle cylinder, LNG storage, and cryogenic pressure vessel. The fully balanced design make regulator keep a constant delivery pressure regardless of inlet pressure variations. In addition, the optimized spring design of Cryogenic Gas Delivery Regulators provides high flow rates. All CPR-T Series Cryogenic Gas Delivery Regulators are supplied factory preset and cleaned for oxygen service by CGA-G-4.1 standard.



Product Specification

Size: 1/2”
Maximum Inlet Pressure: 400 psi
Set pressure range: 40 ~ 200 psi
Temperature Range: -40 °C ~ 74 °C
Fluid: NG, N2, AR, and non-corrosive gas

Application:
LNG Storage / LNG Vehicle Cylinder

Feature:

  • 100% Pressure Test based on factory standard.
  • Valves are cleaned by CGA-G-4.1 standard for the oxygen application.

ComponentMaterial
Body
Bonnet
Brass
Spring Screw SUS304
Diaphragms Seal Poppet Viton
Spring Chamber Nickel Plated Aluminum
Bushing PTFE+MoS2
Sealed Plug Steel
Other parts Brass



Dimensions (Unit:mm):

P1H1
Inch (mm)
P2H2
Inch (mm)
L
Inch (mm)
1/2” NPT 5.9” (149.8) 1/2” NPT 1.32” (33.5) 3.9” (98.9)

TypeMaximum Inlet pressure
(Psi)
Inlet/ outlet ConnectionSet Pressure Mpa (Psi)
GDR-T-15 400 1/2”NPT 0.28 ~ 0.76 (40~110)
GDR-T-15 400 1/2”NPT 0.69 ~ 1.38 (100~200)

HOW TO ORDER

TYPE                        SET PRESSURE (PSI)
CPR-T-15   -              110
