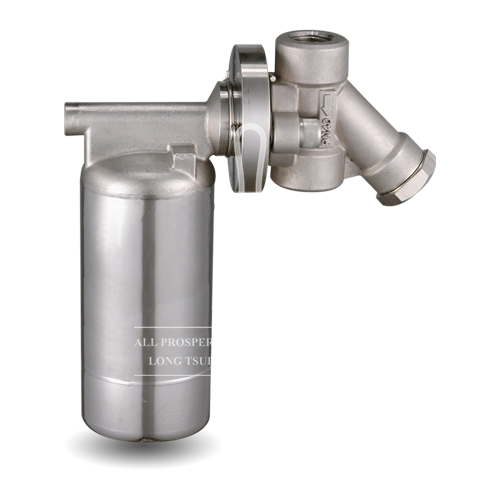

771 With C2

Specification

Size (Screwed End):1/2” – 1” (DN15 – DN25)
Size (Welding Flanged End): 1/2” – 1” (DN15 – DN25)

Connection End

NPT and BSPT Screwed End
Socket Weld End
PN/ JIS/ ANSI Flanged End

Maximum Operating Pressure: 28 KGS
Working Temperature: 427°C

Dimensions: No. IB 771/ IB772/ C2 SERIES Max. Pr. Kg/CM² Unit: mm

No. SIZE A B C D E MOP WT (KG) IB771/ C2 15.20.25 72 40 146 105 60 28 1.6 IB772/ C2 15.20.25 72 57 210 125 60 28 2.6 *NPT. BSPT. SW. AVAILABLE *C2 CONNECTOR IS NOT INCLUDING STRAINER

IB 771/C2 SERIES

General Material– IB771 SERIES

Material – Universal Connector

Integral Parts

OPTIONAL: CHECK VALVE – CV Inverted Bucket Steam Traps furnished with Check Valves as standard The Check Valve (CV) &Scrubbing Wire (SW) cannot installed in one body.

Bucket Stainless Steel 304 Material for Resistance of Corrosion
