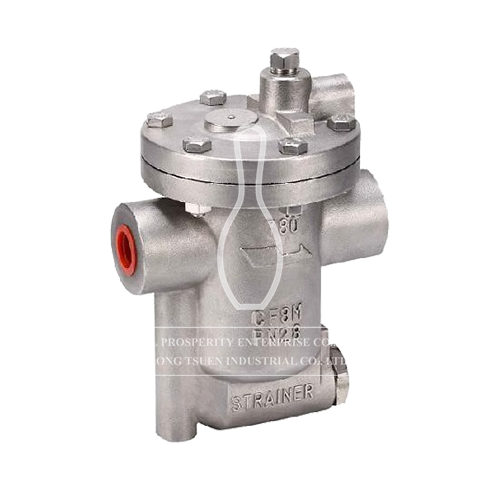

Product Description
Specification
Size (Screwed End): 1/2” – 2” (DN15 – DN50)
Size (Flanged End): 1/2” – 3” (DN15 – DN50)
Connection End
NPT and BSPT Screwed End
Socket Weld End
PN/ JIS/ ANSI Flanged End
Maximum Operating Pressure: 30 KGS
Working Temperature: 320°C
General Material
Condensate Discharge Capacity In Kg/hr (circle Means Orifice Diameter)
Flow Capacity Selection
Integral Parts
CHECK VALVE – CV
DSC Cast Iron Inverted Bucket Steam Traps furnished with Check Valves as standard
The Check Valve (CV) &Scrubbing Wire (SW) cannot installed in one body.
Bucket
Stainless Steel 304 Material for Resistance of Corrosion
Optional Parts
SCRUBBING WIRE – SW
A stainless steel wire put on capto prevent clogging vent hole of bucket dunning operation.
THERMO CONNECTOR – TC
DSC Steam Trap Test Kit could be connected by sensing temperature change inside of steam trap body
to inspect steam trap is ok or not.
BLOWDOWN VALVE – BV
Manual blow-down condensate and dirt form strainer.
BLOWDOWN BALL VALVE – BV
No. 980 – 992 - install 3/8” Stainless Steel Ball Valve
No. 983 – 995 - install 3/4” Stainless Steel Ball Valve
HOW TO ORDER
Bucket
TRAP No. SIZE AND SCREWED STANDARDMOP.
981 X 3/4”NPT X 9K + ACCESSORIES
